Vertical Sealing for pouch bags, bag sealing machine

Model No.
WV-300D
Made in
Taiwan
Request for Quotation


    sealer sourcing with Wu-Hsing

    Spec

    • Application:Commodity,Machinery & Hardware
    • Driven Type:Electric

    Key Features

    WV-D SERIES

    ~100% MADE IN TAIWAN~

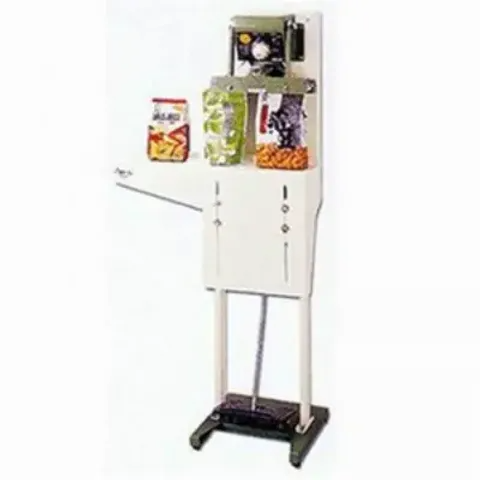

    Wu-Hsing’s WV-D SERIES VERTICAL SEALING CONSTANT HEAT SEALER is foot type sealer. Due to constant heat type, pre-heat 7-10 minutes is necessary before operating. The sealing lengths are 220mm, 250mm, 300mm and 450mm and the sealing width is 15mm or 10mm for selection. The vertical type is specially applied for powder and liquid product packing. Besides, the platform could be height adjustable and made of stainless steel housing for rustproof. Put the bag on sealing place, step down the pedal, wait for 2-3 seconds, and release the pedal, then perfect and durable sealing is finished. This sealer is suitable for alum. foil bags, tin foil bags, or kraft paper bags.

    Additional:

    *According to requirement, can be installed pneumatic device or electromagnet device. Make work easily and conveniently. (WVC-D SERIES/WVS-D SERIES)

    *If need to print date on bags, it can be installed Date Imprinter on the sealer.

    *Stainless steel housing is available.

    Contact us: wuhsing@ms17.hinet.net



    Features:

    * Foot pedal type

    * Constant Heat sealing with Thermostat (E.G.O.) control.

    * Sealing width: 15mm or 10mm

    * Need warm up 7-10 min. and keep its temperature when setting

    * Applied for powder and liquid product packing due to vertical type

    * Ideal for alum. foil bags, tin foil bags, or kraft paper bags

    Specification:

    Model WV-220D WV-250D WV-300D WV-450D
    Voltage 110V/220V
    Power 250W 300W 350W 400W
    Max. Sealing 220*15mm 250*15mm 300*15mm 450*15mm
    Pre-heating Time 7-10min.
    Max. Temperature 0-300°C
    Dimension(mm) 625*340*1311 625*340*1311 625*340*1311 625*340*1311
    Weight 23KG 23.5KG 24KG 24KG

    Main Export Market

    AFRICA ,ASIA ,AUSTRALASIA ,C-AMERICA ,EUROPE ,MID-EAST ,N-AMERICA ,OTHER ,S-AMERICA
